Zenith Model 62 Size 12 Carburetor Kit ck9619


FREE SHIPPING ON US PARTS ORDERS OVER $75

ck9619 Zenith Carburetor Kit
Made in USA. Ethanol compatible.
Includes gaskets, mounting gasket, idle mixture screw and spring and throttle shaft seals and retainers.
Includes printed instructions.
Note: Part # ck9619 was previously ck0619.
Zenith Model 62 Size 12 Carburetor Kit
US Dollars

Also available

Parts listed here may not fit all applications. Check carburetor number listings before ordering parts.

Applications

Untitled Document
  • Allis Chalmers
    G-262, G-2800, G-262, G-2500, C, CH, CR (Gleaner), G-262, D-19, G-262, 12893 (4514151), GT-2800, 190, 190XT
  • John Deere 55
  • I.H.C. U-372, U-450
  • Schramm WVD-35 Compressor
  • Waukesha 195-GK, 195-GKU

Float bowl gasket: 4 11/16" in length. There are some carburetors that have what looks like the same gaskets, but are a different length.

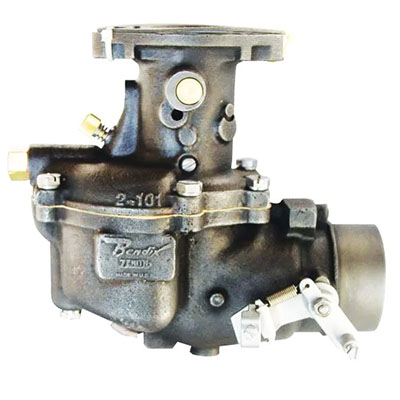

Typical carburetor serviced with this carb kit

zenith 62

Carburetor Numbers

9447
10555
10987
10987
11019
11177
11177
11178
11178
11652
11652
11692
11880
11880
12053
12511
12777
12918
12957
13303
13303
13327
13343
13368
13441
13544
13686
53074
4021805
4021805
4021886
4022025
4512410
4516026
45130850
11019
11177A
AP-19947H
11177A
11177B
11177B
11178A
11178A
11178B
11178B
262538-R92
262542-R93
4514707-3
4514890-4
53074C
53074D
AP-23569
OUH-80
OUHB-80A
TOUHB-80
